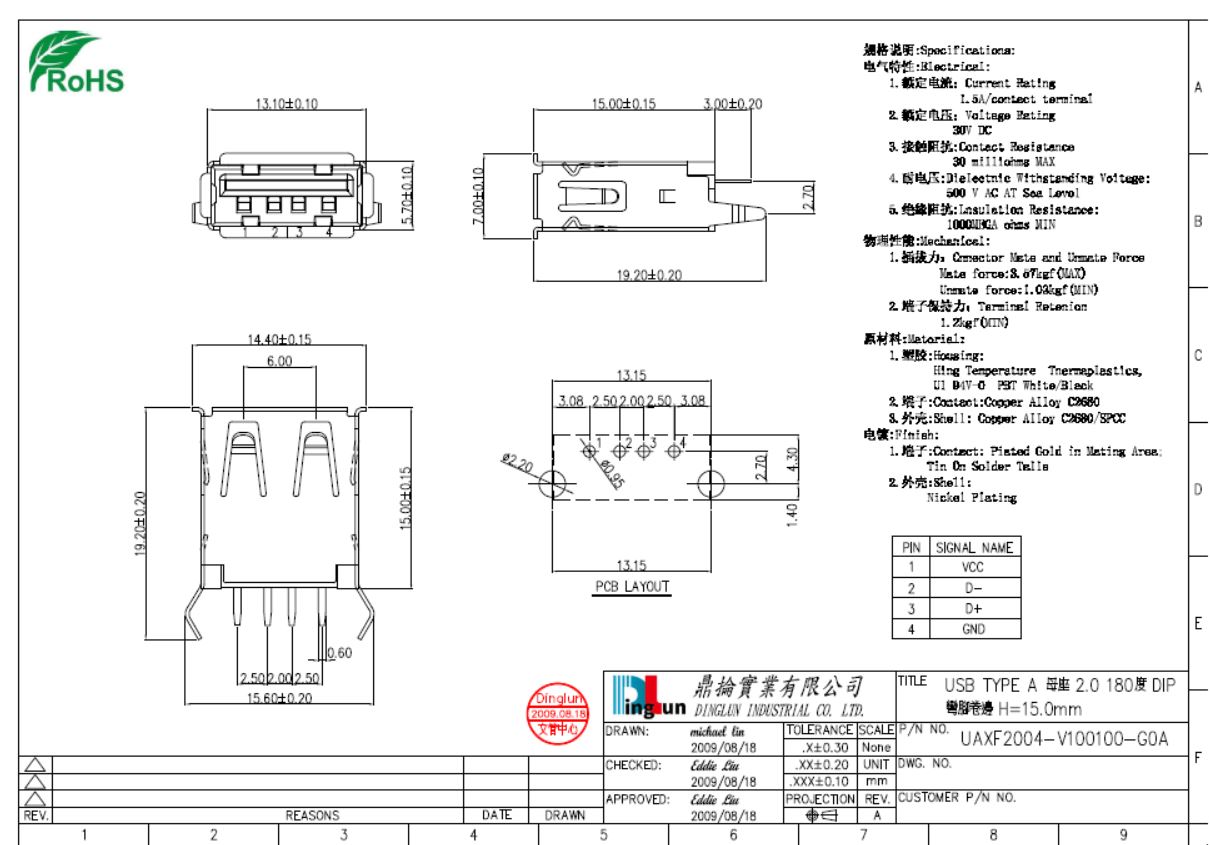

USB 2.0 TYPE A 母座 180度DIP彎腳卷邊H=15.0mm
規格說明Specifications:電氣特性Electrical:
1.額定電流Current Rating:1.5A/contact terminal
2.額定電壓Voltage Rating:30V DC
3.接觸阻抗Contact Resistance:30 milliohms MAX
4.耐電壓Dielectnic Withstanding Voitage:500V AC AT Sea Levol
5.絕緣阻抗Lnsulation Resistance:1000MEGA ohms MIN
物理性能Mechanical:
1.插拔力Cnnector Mate and Unmate Force:Mate force:3.57kgf(MAX)
Unmate force:1.02kgf(MIN)
2.端子保持力Terminal Retenion:1.2kgf(MIN)
原材料Matorial:
1.塑膠Housing:Hing Temperature Tnermaplastics,Ul94V-0 PBT White/Black
2.端子Contact:Copper Alloy C2680
3.外殼Shell:Copper Alloy C2680/SPCC
電鍍Finish:
1.端子Contact:Piated Gold in Mating Area;Tin On Solder Talls
2.外殼Shell:Nickel Plating
包裝:吸塑盒
