TECHNICAL CHARACTERISTICS

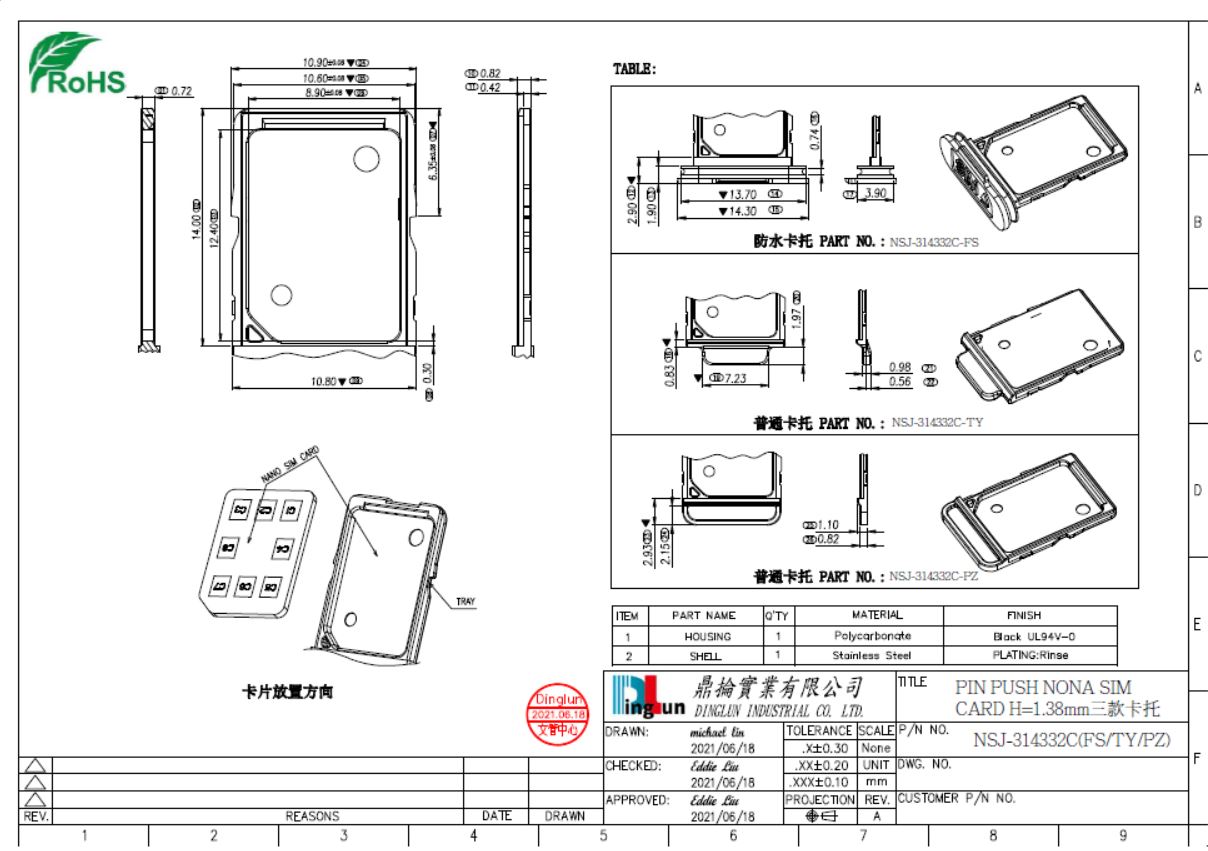

1.General Characteristics Dimensions:12.85Lx17.20Wx1.38H mm
TRAY MATING FORCE:2~10N
TRAY UNMATING FORCE:4~10N
Durability:1500 cycles min
2.Electrical Characteristics Contact resisitance:50mΩ typical,100mΩ Max.
Insulation resistance:>1000m/500V DC
3.Solderability
Vaporphase:215ºC, 30sec, Max
IR reflow:260ºC, 5sec, Max
Manual soldering:370ºC, 3sec, Max
4.Environmental Characteristics
Operating remperature:-40ºC ~ +85ºC
Operating humidity:10% ~ +95%RH
產品優勢：
1.超薄型，非常適用於超薄設計的產品
2.人性化的設計抽屜式卡托，取卡非常方便
3.SIM卡與卡座接觸區的設計防潰功能，達到最好的插卡效果
4.可定制電鍍U'數，抗氧化性強，功能可靠，滿足標準性能測試要求
