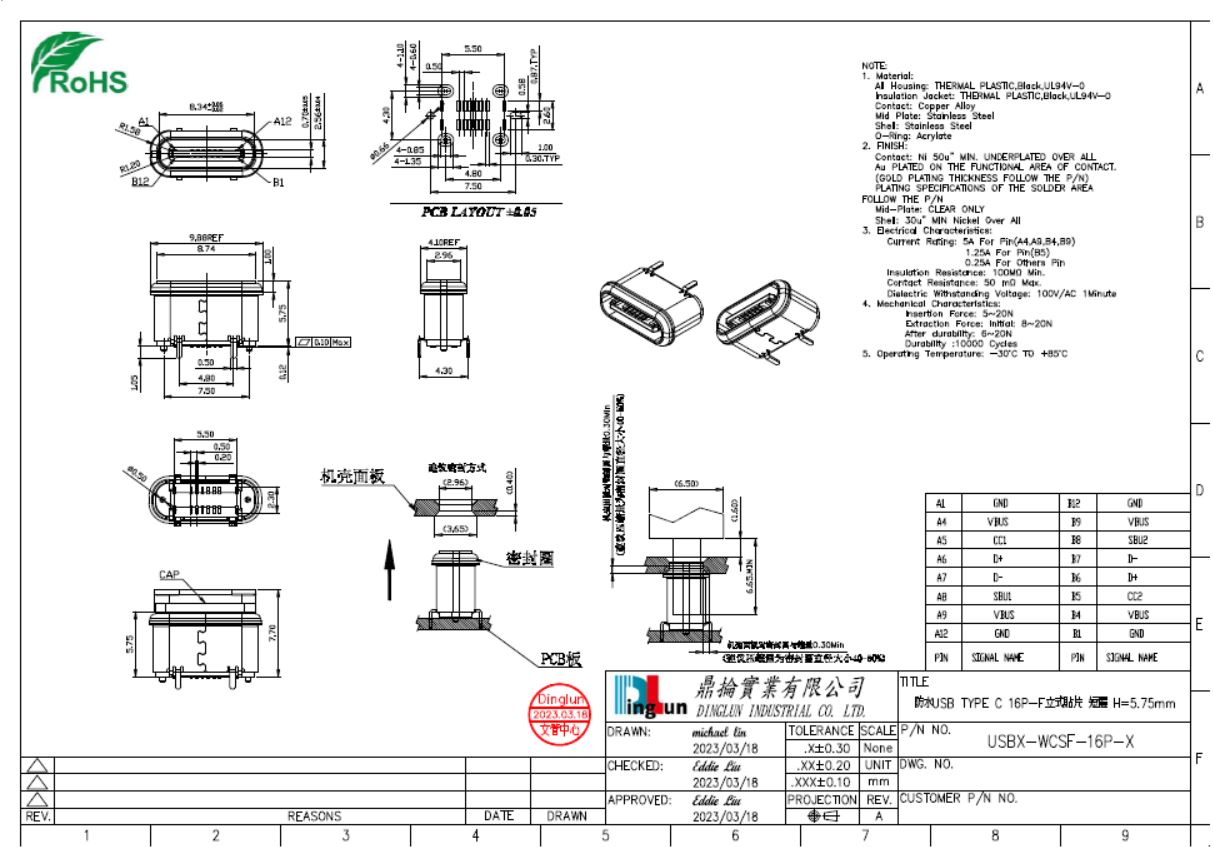

防水TYPE C母座16PIN立式貼片 短體H=5.75mm
NOTE:
1.Material:
All Housing:THERMAL PLASTIC,Black,UL94V-0
Insulation Jacket:THERMAL PLASTIC,Black,UL94V-0
Contact:Copper Alloy
Mid Plate:Stainless Steel
Shell: Stainless Steel
O-Ring:Acrylate
2.FINISH:
Contact:Ni 50u" MIN. UNDERPLATED OVER ALL
Au PLATED ON THE FUNCTIONAL AREA OF CONTACT.
(GOLD PLATING THICKNESS FOLLOW THE P/N)
PLATING SPECIFICATIONS OF THE SOLDER AREA FOLLOW THE P/N
Mid-Plate:CLEAR ONLY
Shell:30u" MIN Nickel Over All
3.Electrical Characteristics:
Current Rating:5A For Pin(A4.A9.B4.B9)
1.25A For Pin(B5)
0.25A For Others Pin
Insulation Resistance:100MΩ Min.
Contact Resistance:50mΩ Max.
Dielectric Withstanding Voltage:100V/AC 1Minute
4.Mechanical Characteristics:
Insertion Force:5~20N
Extraction Force:Initial:8~20N
After durability:6~20N
Durability:10000 Cycles
5.Operating Temperature:-30°C TO +85°C
包裝:卷裝
