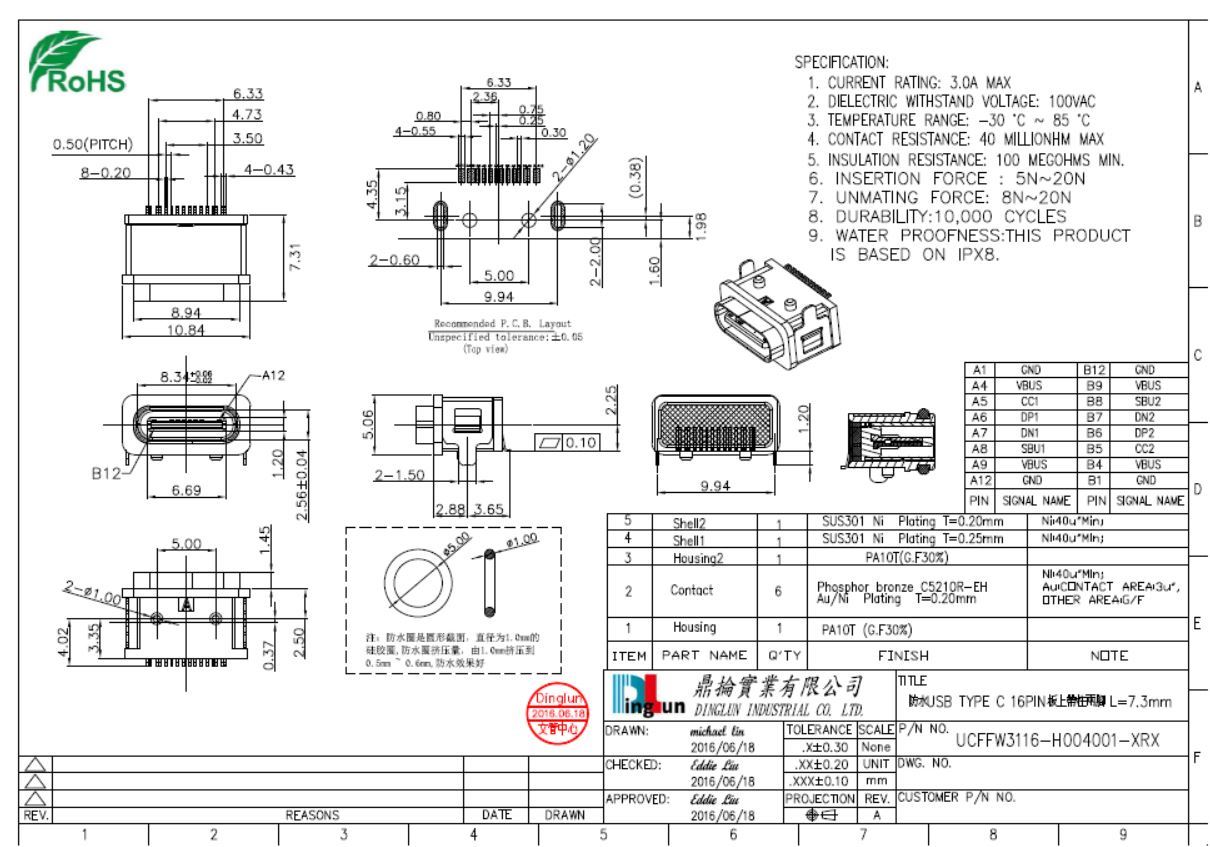

防水USB TYPE C 16PIN板上帶柱兩腳 L=7.3mm
SPECIFICATION:
1.CURRENT RATING:3.0A MAX
2.DIELECTRIC WITHSTAND VOLTAGE:100VAC
3.TEMPERATURE RANGE:-30°C ~ 85°C
4.CONTACT RESISTANCE:40 MILLIONHM MAX
5.INSULATION RESISTANCE:100 MEGOHMS MIN.
6.INSERTION FORCE:5N~20N
7.UNMATING FORCE:8N~20N
8.DURABILITY:10000 CYCLES
9.WATER PROOFNESS: THIS PRODUCT IS BASED ON IPX8.
包裝:卷裝
