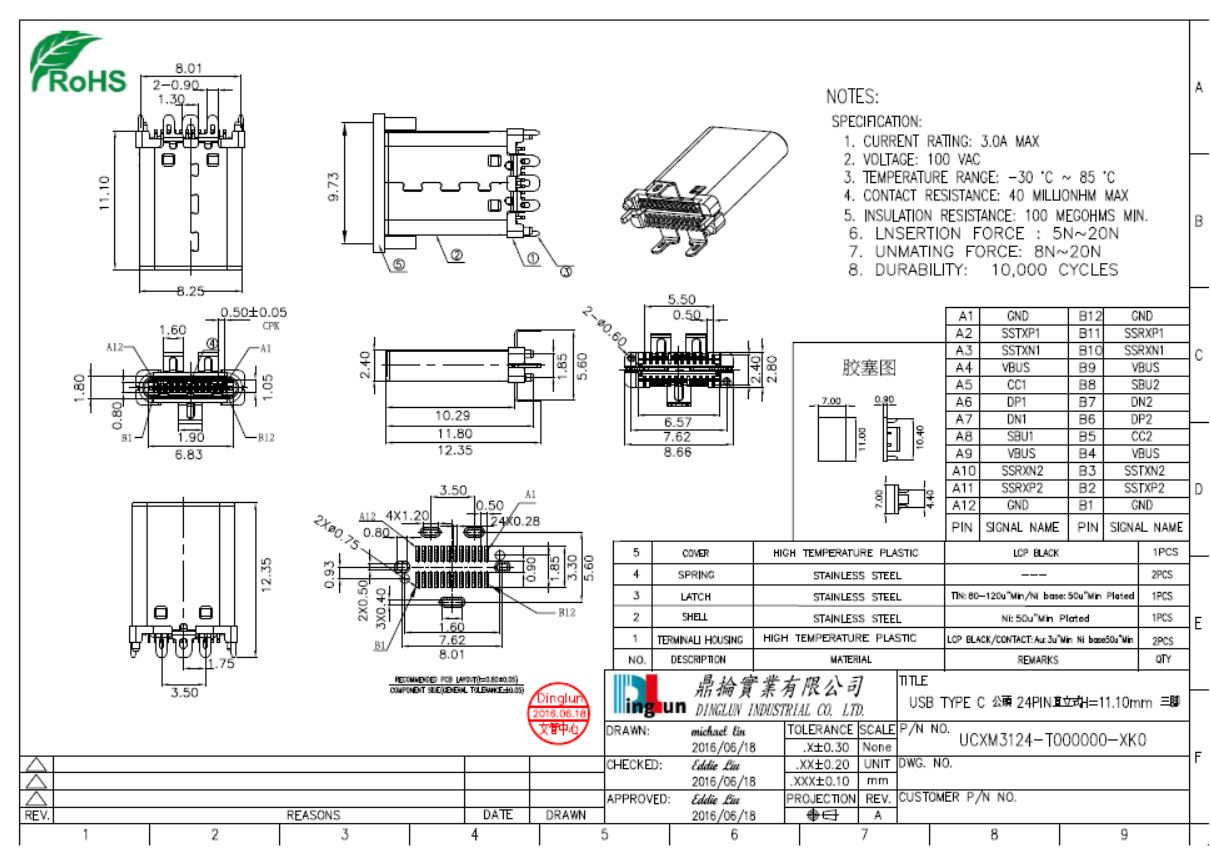

USB 3.1 TYPE C公頭24P立式貼片H=11.1mm高三腳插板 180度SMT

SPECIFICATION:
  1.CURRENT RATING:3.0A MAX
  2.VOLTAGE:100 VAC
  3.TEMPERATURE RANGE:-30°C ~85°C
  4.CONTACT RESISTANCE:40 MILLIONHM MAX
  5.INSULATION RESISTANCE:100 MEGOHMS MIN.
  6.LNSERTION FORCE:5N~20N
  7.UNMATING FORCE:8N~20N
  8.DURABILITY:10000 CYCLES

包裝:卷裝
