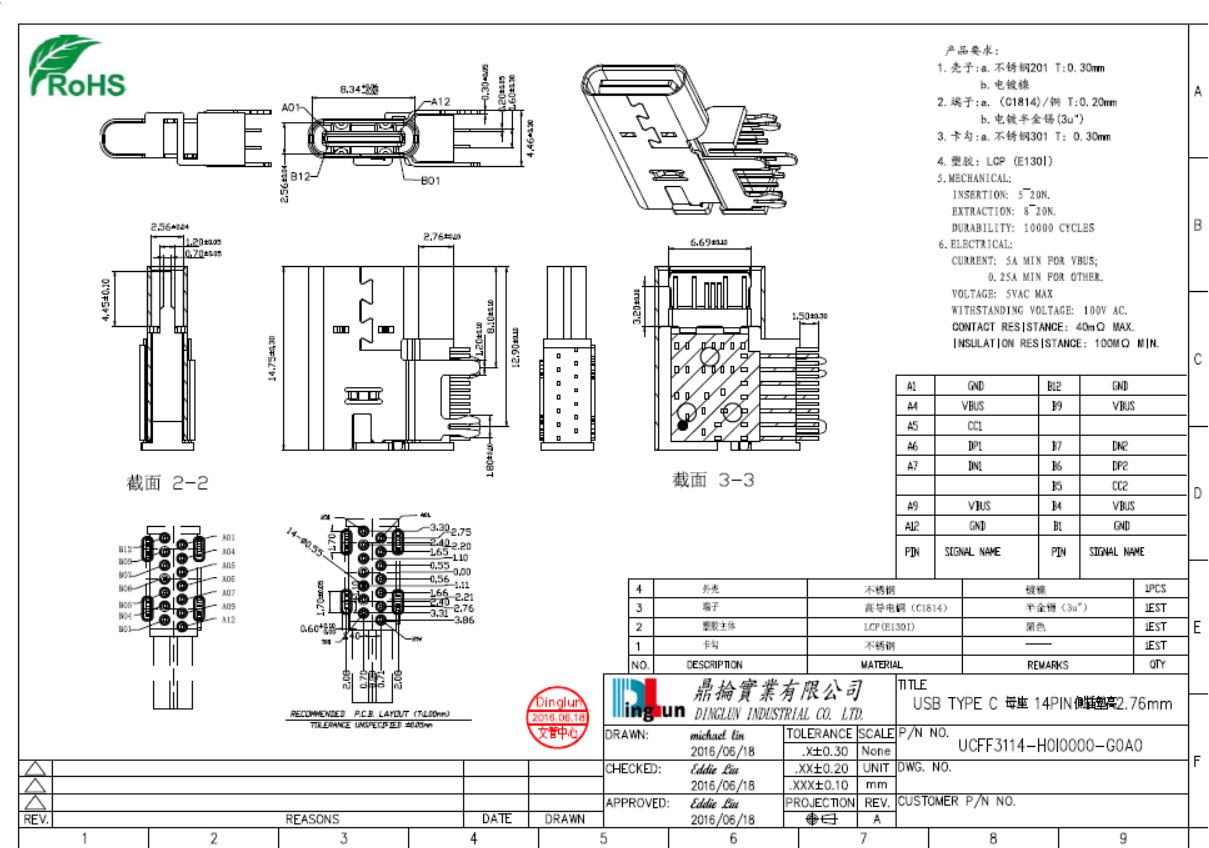

USB 3.1 TYPE C 母座14PIN側插墊高2.76mm
1.外殼:a.不銹鋼201 T:0.30mm
b:電鍍鎳
2.端子:a:(C1814)/銅 T:0.20mm
b:電鍍半金錫(3u")
3.卡勾:a:不銹鋼301 T:0.30mm
4.塑膠:LCP(E1301)
5.MECHANICAL:
INSERTION:5-20N
EXTRACTION:8-20N
DURABILITY:10000 CYCLES
6.ELECTRICAL:
CURRENT:5A MIN FOR VBUS;0.25A MIN FOR OTHER.
VOLTAGE:5VAC MAX
WITHSTANDING VOLTAGE:100V AC.
CONTACT RESISTANCE:40mΩ MAX.
INSULATION RESISTANCE:100MΩ MIN.
包裝:吸塑盒
