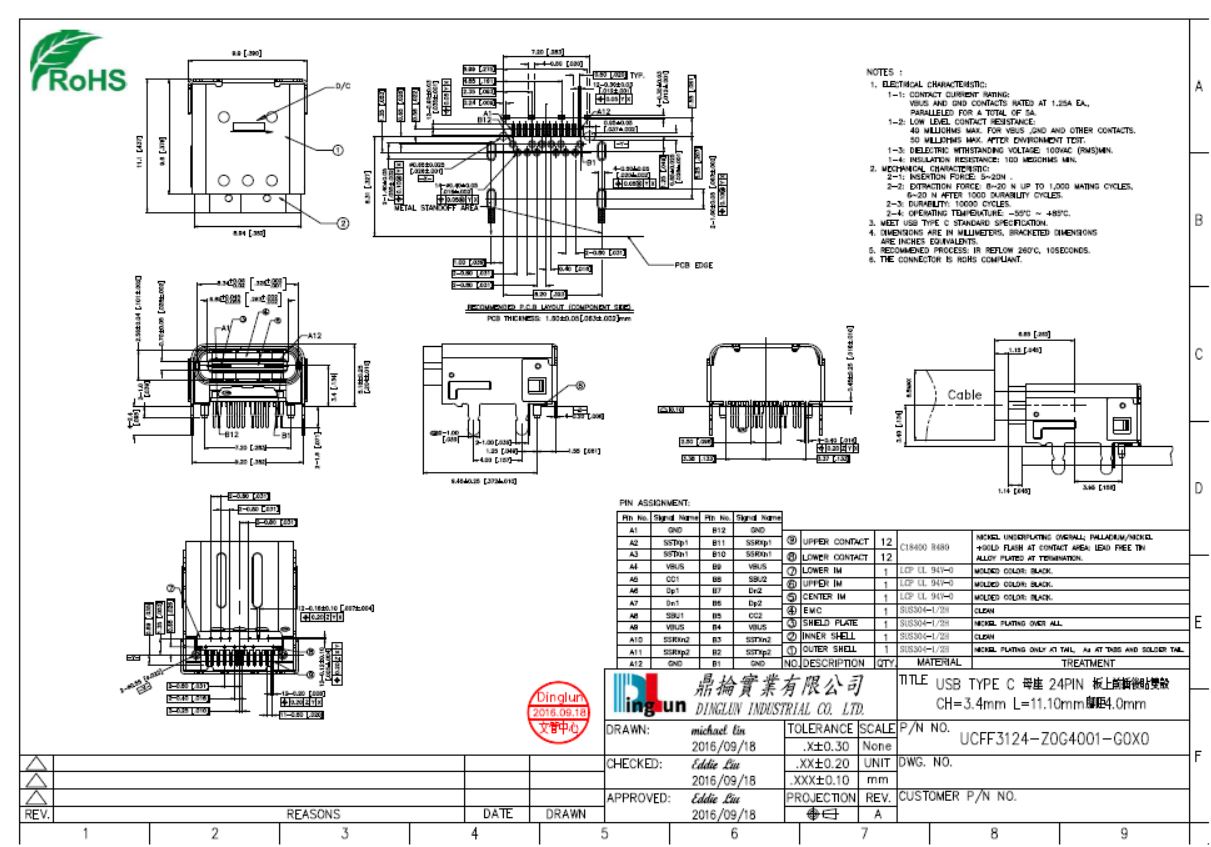

NOTES:
1.ELECTRICAL CHARACTERISTIC:
  1-1.CONTACT CURRENT RATING:
         VBUS AND GND CONTACTS RATED AT 1.25A EA,PARALLELED FOR A TOTAL OF 5A.
  1-2.LOW LEVEL CONTACT RESISTANCE:
         40 MILLIOHMS MAX.FOR VBUS,GND AND OTHER CONTACTS.
         50 MILLIOHMS MAX.AFTER ENVIRONMENT TEST.
  1-3.DIELECTRIC WITHSTANDING VOLTAGE:100VAC(RMS)MIN.
  1-4.INSULATION RESISTANCE:100 MEGOHMS MIN.
2.MECHANICAL CHARACTERISTIC:
  2-1.INSERTION FORCE:5~20N
  2-2.EXTRACTION FORCE:8~20N UP TO 1000 MATING CYCLES,
                                             6~20N AFTER 1000 DURABILITY CYCLES.
  2-3.DURABILITY:10000 CYCLES.
  2-4.OPERATING TEMPERATURE:-55°C ~ +85°C.
3.MEET USB TYPE C STANDARD SPECIFICATION.
4.DIMENSIONS ARE IN MILLIMETERS,BRACKETED DIMENSIONS ARE INCHES EQUIVALENTS.
5.RECOMMENED PROCESS:IR REFLOW 260°C, 10SECONDS.
6.THE CONNECTOR IS ROHS COMPLIANT.
