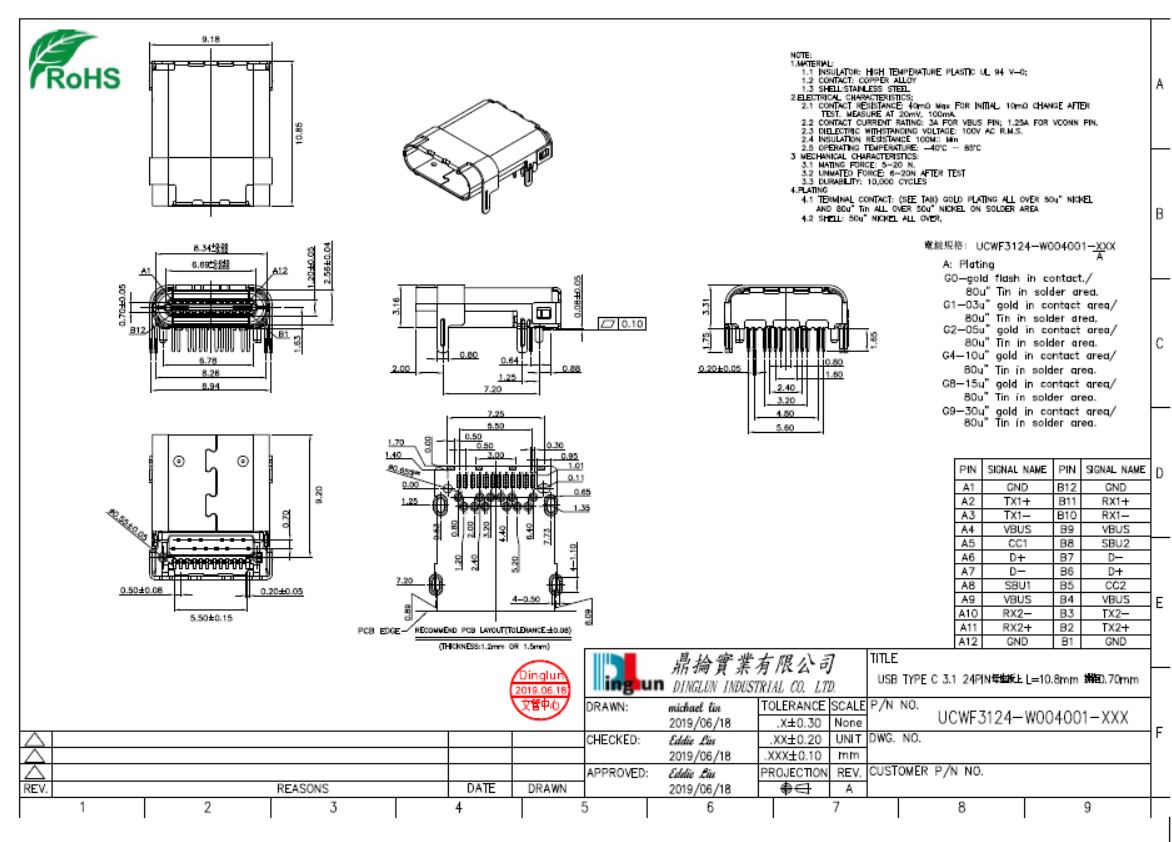

USB TYPE C 3.1 24PIN母座板上 L=10.8mm 排距0.70mm

NOTE:
1.MATERIAL:
  1-1.INSULATOR:HIGH TEMPERATURE PLASTIC UL94V-0
  1-2.CONTACT:COPPER ALLOY
  1-3.SHELL:STAINLESS STEEL
2.ELECTRICAL CHARACTERISTICS:
  2-1.CONTACT RESISTANCE:40mΩ Max FOR INITAL.10mΩ CHANGE AFTER TEST.MEASURE AT 20mV,100mA.
  2-2.CONTACT CURRENT RATING:3A FOR VBUS PIN;1.25A FOR VCONN PIN.
  2-3.DIELECTRIC WITHSTANDING VOLTAGE:100V AC R.M.S.
  2-4.INSULATION RESISTANCE:100MΩ Min
  2-5.OPERATING TEMPERATURE:-40°C ~ 85°C
3.MECHANICAL CHARACTERISTICS:
  3-1.MATING FORCE:5~20N
  3-2.UNMATED FORCE:6~20N AFTER TEST
  3-3.DURABILITY:10000 CYCLES
4.PLATING:
  4-1.TERMINAL CONTACT:(SEE TAB) GOLD PLATING ALL OVER 50u" NICKEL AND
                                               80u" Tin ALL OVER 50u" NICKEL ON SOLDER AREA
  4-2.SHELL:50u" NICKEL ALL OVER
