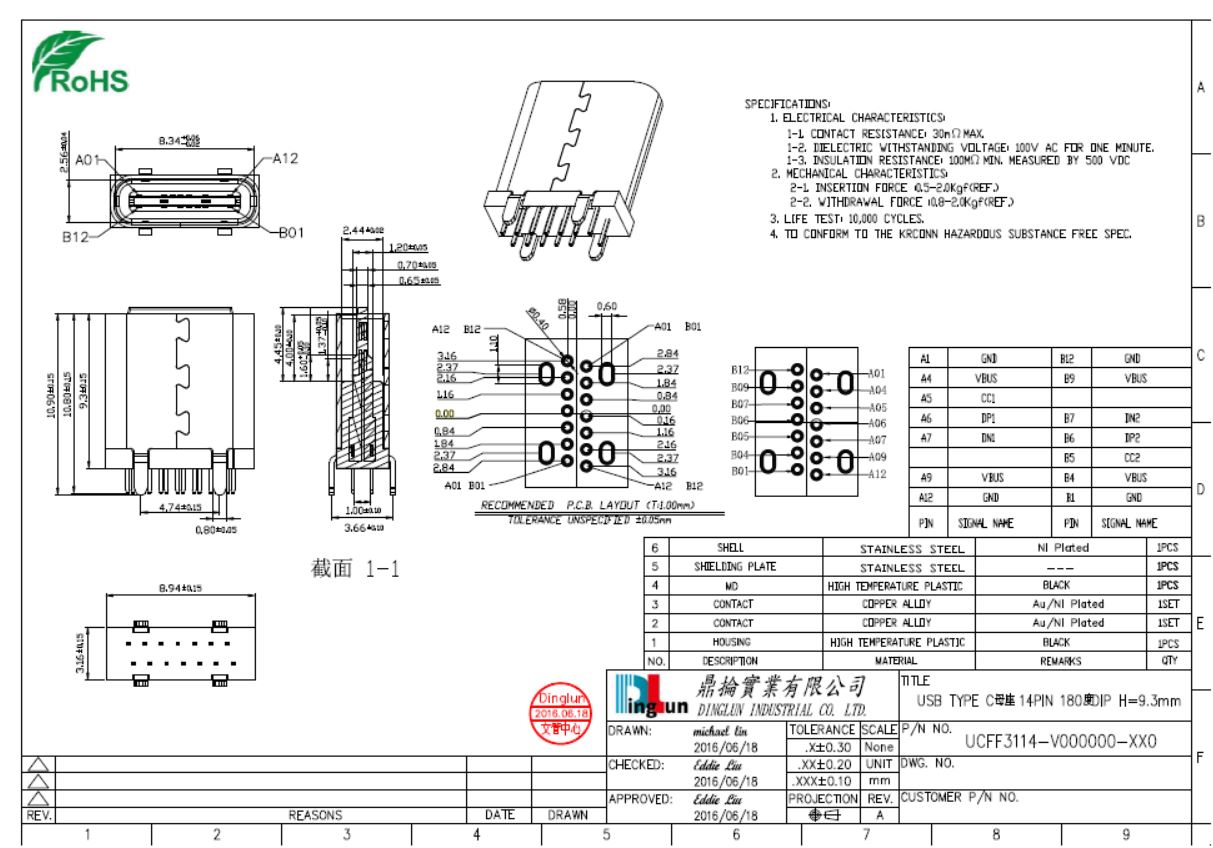

USB TYPE C 母座14PIN 180度DIP H=9.3mm

SPECIFICATIONS:
1.ELECTRICAL CHARACTERISTICS:
  1-1.CONTACT RESISTANCE:30mΩ MAX
  1-2.DIELECTRIC WITHSTANDING VOLTAGE:100V AC FOR ONE MINUTE
  1-3.INSULATION RESISTANCE:100MΩ MIN.MEASURED BY 500 VDC
2.MECHANICAL CHARACTERISTICS:
  2-1.INSERTION FORCE:0.5~2.0Kgf(REF.)
  2-2.WITHDRAWAL FORCE:0.8~2.0Kgf(REF.)
3.LIFE TEST:10000 CYCLES
4.TO CONFORM TO THE KRCONN HAZARDOUS SUBSTANCE FREE SPEC.
